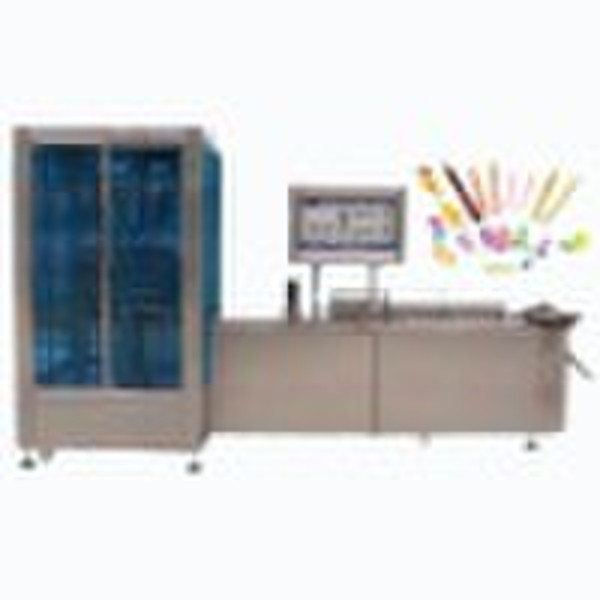

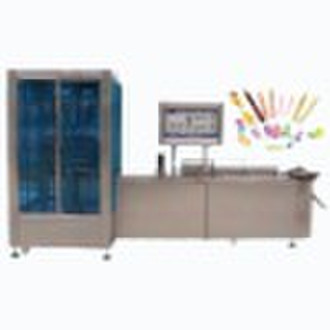

Inject Filling and Sealing Machine

Application: It can fill jelly, syrup, milk beverage, frozen sucker and other kinds of soft drinks, etc. It can seal vertical and abnormity soft plastic tube. Main standard feature The completely closed loop parts can avoid leakage and pollution. It can fill and seal different vertical and abnormity soft plastic tube synchronously. When the nozzle fills full tubes it stops automatically. The filling nozzle also can stop to fill beverage when the filling point has not tube. It makes the heating much faster than usual. The adiabatic part can avoid burn. The seal is symmetrical, straight and beautiful.Machine layout more reasonable, maintenance is more convenient. Soft start-up, balanced capability, easy timing, and high-speed running. Exterior design more delicate and beautiful. Instead of the carbon steel structure is the stainless steel structure can improve the food hygiene grade.The pneumatic vacancy detection action is more accurate, reliable and stable.This product has obtained four national patents.Main technical data Packing rate 6000-10000 tubes/hr Filling capacity 25-200 ml Caliber Φ(7.5-11) mm×25-30 mm (Caliber X height) Φ(16-18) mm×30-35 mm (Caliber X height) Type of tube Vertical or abnormity soft tube Material of tube PP.PE.PS.EPS.PET.PVC. Power input 3N-50Hz 380V (selective purchasing 220V/50Hz) Motor power 0.55 KW Heater power 3.5 KW Overall dimension 3800 mm×1160 mm×2150 mm (L×W×H) Weight 800 kg
