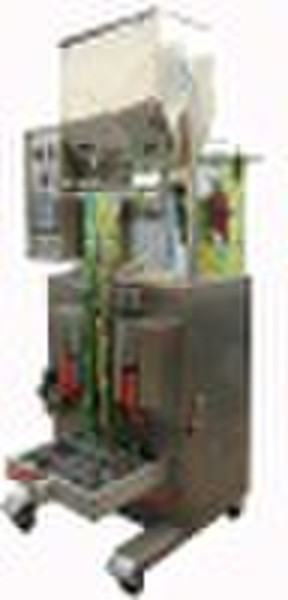

Automatic Double Units Vertical Packing Machine

Application: It is widely applied to forming, filling and sealing of liquid , paste, such as Jelly bar, Soups, Sauces, Milk, Juice , Drinks, Ice bag drinks, and so on. Main standard feature The stainless steel structure and unique double units filling, high output. It can product 5000-8000 bags per hour.It is automatic working procedure such as delivering film, computation, filling, sealing, cutting, printing and form leptosomatic bag and so on. It can adjust the length and width of bags.The filled exterior of bag is plump and beautiful. The airtight seal is firm and the both denticulate sides rip easily. Double plies heat preservation and fluid position automatically controlled.This machine is controlled by CPU SCM and step-servo motor. Maintenance is more convenient. Soft start-up, balanced capability, easy timing, and high-speed running. Main technical dataPacking rate5000-8000 bags/hrMode of packingQuantificational fillingBag length30-240 mmFilm width85-220 mmBag diameterΦ10-29 mmPacking capacity≤200 mlWrapper Polyethylene complex plastic film, Aluminum foil, etc.Power input3N-50Hz 380V (selective purchasing 220V/50Hz)Heater power≤3.2 KWMotor power0.55 KWOverall dimension860mm×1350mm×2100mm (L×W×H)Weight400 kg ZGDQ-3D ZGDQ-4D ZGDQ-6D ZGDQ-10D ZGDQ–12D ZGDQ-24D Packingrate(cups/hr) 3000- 4500 3840- 6000 6000- 9000 9600- 15000 11520- 18000 23040- 36000 Filmwidth(mm) 320 340 415 365 315 620 Fillingcapacity ≤400 300ml 120-350ml 15-50ml 30ml 12-30ml Modeoffill Constantdisplacementpumpfillingorelectroniccontroltoppouring Speedcontrol steplessspeedregulation Vessel PP.PE.PS.EPS.PSP.PET.PVC.Aluminumfoil.etc. Film PE.PS.PP.Nylon,aluminumfoil.Ripeasilyfilm.Etc. Powerinput 3N-50HZ380V MotorPower 0.75KW HeaterPower 4-6KW AirPressure 0.5-0.8Mpa AirConsumption 0.45-0.8m3/min Overalldimension 4000X800X1700mm3 6000X800X1700mm3(L×W×H) Weight 1200-1600kg 6000-10000 tubes/hr Filling capacity 25-200 ml Caliber Φ(7.5-11) mm×25-30 mm (Caliber X height) Φ(16-18) mm×30-35 mm (Caliber X height) Type of tube Vertical or abnormity soft tube Material of tube PP.PE.PS.EPS.PET.PVC. Power input 3N-50Hz 380V (selective purchasing 220V/50Hz) Motor power 0.55 KW Heater power 3.5 KW Overall dimension 3800 mm×1160 mm×2150 mm (L×W×H) Weight 800 kg
